Gravity Table & Destoner

Crippen Gravity Separators and Destoners are the finest in the world. When properly installed and operated, they will produce the world’s most accurate separations.

They are performing in hundreds of facilities and on many products.

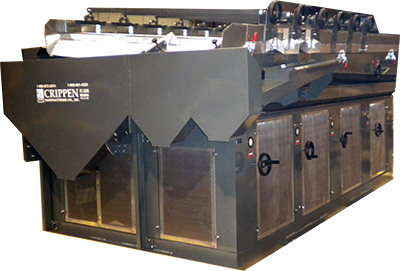

Crippen Gravity Separators are capable of separating dry granular particles of uniform size which differ in specific gravity. They are employed throughout the seed industry to remove light undesirable seed from a wide variety of seed crops.

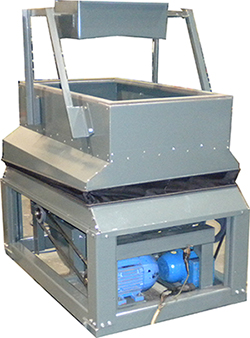

Destoners are applicable whenever you wish to remove a small amount of heavy contamination from the desired product. Typically, destoners are used to remove stones, mud balls, glass and tramp metal from edible beans and rice.

Crippen Separators have great features including counter-balance system and heavy-duty steel frames, urethane-coated deck overcover, backwardly inclined fans for lower horsepower requirements, central grease console and independent fan control with tachometers.

density stoner

Density Separator Brochurepdf_icon_small
Destoner Brochurepdf_icon_small

Gravity Separators Specs

MODEL  Deck Area (Sq Ft) Ave Capacity BPH
SG 10 3.1 1 – 25
G 3000 12.9 50 – 75
G 4000 27.7 150 – 220
G 5000 38.2 200 – 275
G 6000 46.6 325 – 400
G 7000 68.9 650 – 800

*Capacities indicate the approximate general cleaning capacity based on wheat. Capacities will vary depending on impurities to be removed and desired quality of finished product.

gravity Gravity-Deck-Top-View-W

Destoner Specs

MODEL  Deck Area (Sq Ft) Ave Capacity BPH
SG-10 2.9 30 – 50
S 420 8.0 90 – 135
S 430 12.0 140 – 215
S 530 15.0 190 – 250
S 540 22.5 275 – 375
S 560 30.0 400 – 500
S 580 40.0 500 – 650
S 5100 50.0 700 – 800
S 5200 60.0 1000 – 1250

*Capacities indicate the approximate general cleaning capacity based on wheat. Capacities will vary depending on impurities to be removed and desired quality of finished product.

stoner2 Density-S-560-Stoner-a-W
