aspiratorCrippen Northland Superior¬†Aspirators provide an effective solution for dust, fines and chaff removal. Two basic models are available: Open Circuit, which uses the external dust control system to provide a fresh air supply; and Closed Circuit, which uses integral fans to provide a supply of recirculated air. In both models the air supply is pulled through the product stream to lift and separate fines from the product mass. NS Aspirators are available in widths from 24″ to 115″ and in various body styles.

aspirator-schematicOptions

Fixed- or variable-speed feed rolls for uniform feed rate and positive shut-off on selected models

Crippen Aspirators Brochurepdf_icon_small
Crippen Northland Superior Aspiratorspdf_icon_small

Closed Circuit

Aspirator – Closed Circuit:

Model

Capacity (Wheat)

Feed Roll
Motor* (Option)

Screw
Motor

Fan
Motor(s)

Air
(CFM)

Weight

Length

Width

Height

Bu/Hr

MT/Hr

Lbs

Kg

Inch

MM

Inch

MM

Inch

MM

Wide Body Aspirators

NS-12AS36

1200

32

*2

0.75

1×3

540

1600

727

95

2413

75

1905

65

1651

NS-12AS48

1600

43

*2

0.75

1×5

700

2000

909

95

2413

86

2184

65

1651

NS-12AS60

2000

54

*2

0.75

1×5

875

2400

1091

95

2413

102

2591

65

1651

NS-12AS84

2800

76

*3

1

2×5

1250

3700

1682

95

2413

125

3175

65

1651

NS-12AS101

3350

91

*3

1

2×5

1475

4500

2045

95

2413

143

3632

65

1651

NS-12AS115

3800

104

*3

1

2×5

1675

5100

2318

95

2413

157

3988

65

1651

NS-18AS84

4400

119

*3

1

2×5

1425

4200

1909

91

2311

154

3912

62

1575

NS-18AS90

4700

127

*3

1

2×5

1540

4700

2136

91

2311

159

4039

62

1575

NS-18AS101

5300

143

*3

1.5

2×5

1725

5200

2364

91

2311

170

4318

62

1575

NS-18AS115

6000

163

*3

1.5

2×5

1950

5800

2636

91

2311

184

4674

62

1575

NS-24AS72

6450

175

*3

1

2×5

1400

4500

2045

91

2311

141

3581

62

1575

NS-24AS90

8100

220

*3

1

2×5

1765

5700

2591

91

2311

178

4521

62

1575

NS-24AS115

10300

279

*3

1.5

2×5

2250

7300

3318

91

2311

184

4674

62

1575

NS-HC56

6000

163

*2

0.75

5

1200

4000

1818

117

2972

104

2642

42

1067

NS-56

12000

327

*5

10

2000

6100

2773

172

4343

104

2642

56

1419

24″ Dual Aspirator

300

8

3

500

1500

682

63

1600

37

940

82

2083

48″ Dual Aspirator

600

16

5

700

2000

909

63

1600

79

2007

82

2083

CCAS

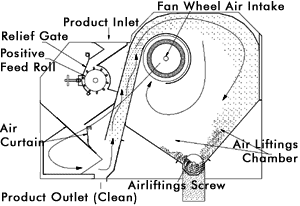

1. Closed Circuit Aspirators use recirculated air from internal fans to separate or lift materials from the product mass.
2. Recommended usage is for primary or secondary cleaning applications containing 2% or less fines.
3. Typical applications: wheat, barley, oats, canola, corn, rice, pulse crops, edible beans, soybeans, sunflower, safflower, mustard, sorghum, etc.
4. Capacities variable with physical characteristics of incoming product, outgoing specifications, scalper mesh size, moisture content and operating efficiency.
5. Proper setting of the air control adjustments is critical in optimizing performance of the Aspirator.

Open Circuit

Aspirator – Open Circuit:

Model

Capacity (Wheat)

Feed Roll
Motor* (Option)

Screw
Motor

Air
(CFM)

Weight

Length

Width

Height

Bu/Hr

MT/Hr

Lbs

Kg

Inch

MM

Inch

MM

Inch

MM

NS-12AS36

1200

32

*2

0.75

2150

1400

636

107

2718

67

1702

41

1041

NS-12AS48

1600

43

*2

0.75

2800

1800

818

107

2718

79

2007

41

1041

NS-12AS60

2000

54

*2

0.75

3500

2200

1000

107

2718

91

2311

41

1041

NS-12AS84

2800

76

*3

1

5000

3300

1500

107

2718

115

2921

41

1041

NS-12AS101

3350

91

*3

1

5900

4000

1818

107

2718

132

3353

41

1041

NS-12AS115

3800

104

*3

1

6700

4600

2091

107

2718

146

3708

41

1041

NS-18AS84

4400

119

*3

1

5700

3400

1545

120

3048

116

2946

53

1346

NS-18AS90

4700

127

*3

1

6150

3700

1682

120

3048

122

3099

53

1346

NS-18AS101

5300

143

*3

1.5

6900

4000

1818

120

3048

133

3378

53

1346

NS-18AS115

6000

163

*3

1.5

7800

4600

2091

120

3048

147

3734

53

1346

NS-24AS72

6450

175

*3

1

5600

3100

1409

138

3505

110

2794

74

1880

NS-24AS90

8100

220

*3

1

7050

4000

1818

138

3505

147

3734

74

1880

NS-24AS115

10300

279

*3

1.5

9000

5000

2273

138

3505

153

3886

74

1880

NS-HC56

6000

163

*2

0.75

4800

3200

1455

113

2870

104

2642

42

1067

NS-56

12000

327

*5

8000

5700

2590

172

4343

104

2642

56

1419

24″ Dual Aspirator

300

8

3

2000

1000

455

58

1473

43

1092

82

2083

48″ Dual Aspirator

600

16

5

2800

1630

741

58

1473

58

1473

82

2083

OCAS

1. Open Circuit Aspirators require a remote dust control system to remove air separated materials.
2. Recommended usage is for all applications in a pre-cleaning or primary cleaning environment where large amounts of fines are present.
3. Typical applications: wheat, barley, oats, canola, corn, rice, edible beans, soybeans, sunflower, safflower, mustard, sorghum, etc.
4. Capacities variable with physical characteristics of incoming product, outgoing specifications, scalper mesh size, moisture content and operating efficiency.
5. Proper setting of the air control adjustments is critical in optimizing performance of the Aspirator.
